Film laminating machine series

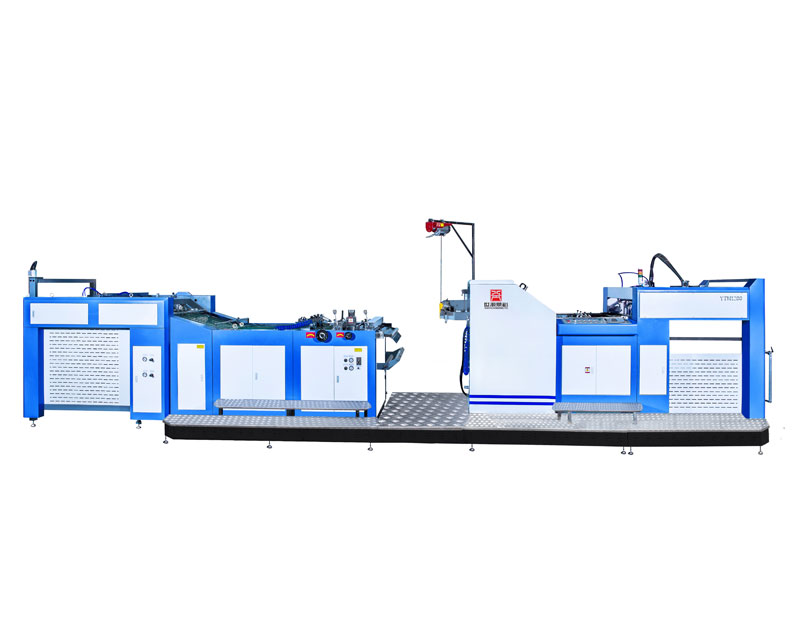

YXFM-1100S/1100M/1100L Automatic pre-coating film laminating machine

FUNCTION CHARACTERISTIC

★ Servo control  the  adage covering system ensure  the  accuracy
★ The New  film institution  single operation can  finish the film lamination and save the cost
★ Curly institutions proof suitable for thin paper laminating
★ Man-machine interface touch screen operate PLC control system
★ Hot pressing powder system
★ Through industrial design beautiful appearance generous  make the machine  unique

TECHNICAL SPECIFICATION

Model ZYXFM-1100M
Speed（m/min） 10-120
Paper size（mm） 1080X1200-320X320
Paper weight（g/㎡） 100-500
Heating method Electromagnetic heating system
Bonding temperature（℃） 30-120
Bonding pressure（MPa） 3-15
Hydraulic pressure method Automatic pressuring Auto
Power cord 25mm2 copper wire
The machine weight（kg） 5500
Machine noise  ≤80 dB(A)
The pressure roller diameter（mm） 320
Machine power （KW） 11
Total power（KW） 18
